Industrial Flanges
Horizon Steel N Alloy delivers precision-engineered forged industrial flanges designed to securely connect pipelines, valves, pumps, and pressure vessels. Manufactured to exacting dimensional standards, our flanges ensure exceptional mechanical strength, modular accessibility, and absolute leak-proof bolted joint integrity in the most demanding environments.
- ASME B16.5 & B16.47 (Series A/B) Compliant
- Class 150# to 2500# Pressure Ratings
- CNC Machined Facing (RF, FF, RTJ)
Available Materials & Grades
| Material Type | Forged Material Grades | International Standards |
|---|---|---|
| Stainless Steel | F304, F304L, F304H, F316, F316L, F316Ti, F321, F347, F310S, F904L | ASTM A182 |
| Carbon Steel | A105, A105N, A694 (F42, F52, F60, F65, F70) | ASTM A105, ASTM A694 |
| Low Temp Carbon Steel | A350 LF2, A350 LF3 | ASTM A350 |
| Alloy Steel | F1, F5, F9, F11, F12, F22, F91 | ASTM A182 |
| Duplex & Super Duplex | F51 (UNS S31803), F53 (UNS S32750), F55 (Zeron 100) | ASTM A182 |
| High Nickel & Exotic Alloys | Inconel 600/625, Hastelloy C276, Monel 400, Alloy 20, Titanium Gr.2 / Gr.5 | ASTM B564, ASTM B381 |
Comprehensive Technical Specifications
| Specification Parameter | Detailed Range & Capabilities |
|---|---|
| Primary Flange Types | Weld Neck (WNRF), Slip-On (SORF), Blind (BLRF), Socket Weld (SWRF), Threaded, Lap Joint, Spectacle Blinds, Spade & Ring Spacers, and Orifice Flanges. |
| Size Range (Nominal Bore) |
ASME B16.5: 1/2" NB to 24" NB ASME B16.47 (Series A/B): 26" NB to 60" NB Custom Large Diameter: Up to 120" NB manufactured upon client drawing request. |
| Pressure Ratings (Class) |
ASME/ANSI: Class 150, 300, 400, 600, 900, 1500, 2500 DIN / EN (PN Ratings): PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 JIS: 5K, 10K, 16K, 20K, 30K, 63K |
| Facing Configurations | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Tongue & Groove (T&G), Male & Female (M&F). CNC machined surface finish (125-250 AARH standard). |
| Manufacturing Method | Closed-die forging and seamless rolled rings to ensure optimal grain flow, followed by precision CNC turning and multi-axis drilling for bolt hole accuracy. |
| Surface Finishes & Coatings | Anti-Rust Oil, Black Paint, Yellow Transparent Paint, Zinc Plated, Hot-Dipped Galvanized, or Pickled & Passivated (for Stainless Steels). |
| Testing, Inspection & Compliance | 100% Dimensional checks, PMI (Positive Material Identification), Ultrasonic Testing (UT) for internal forging defects, NACE MR0175 / ISO 15156 compliant, EN 10204 3.1 MTC supplied. |
Structural Types & Formats

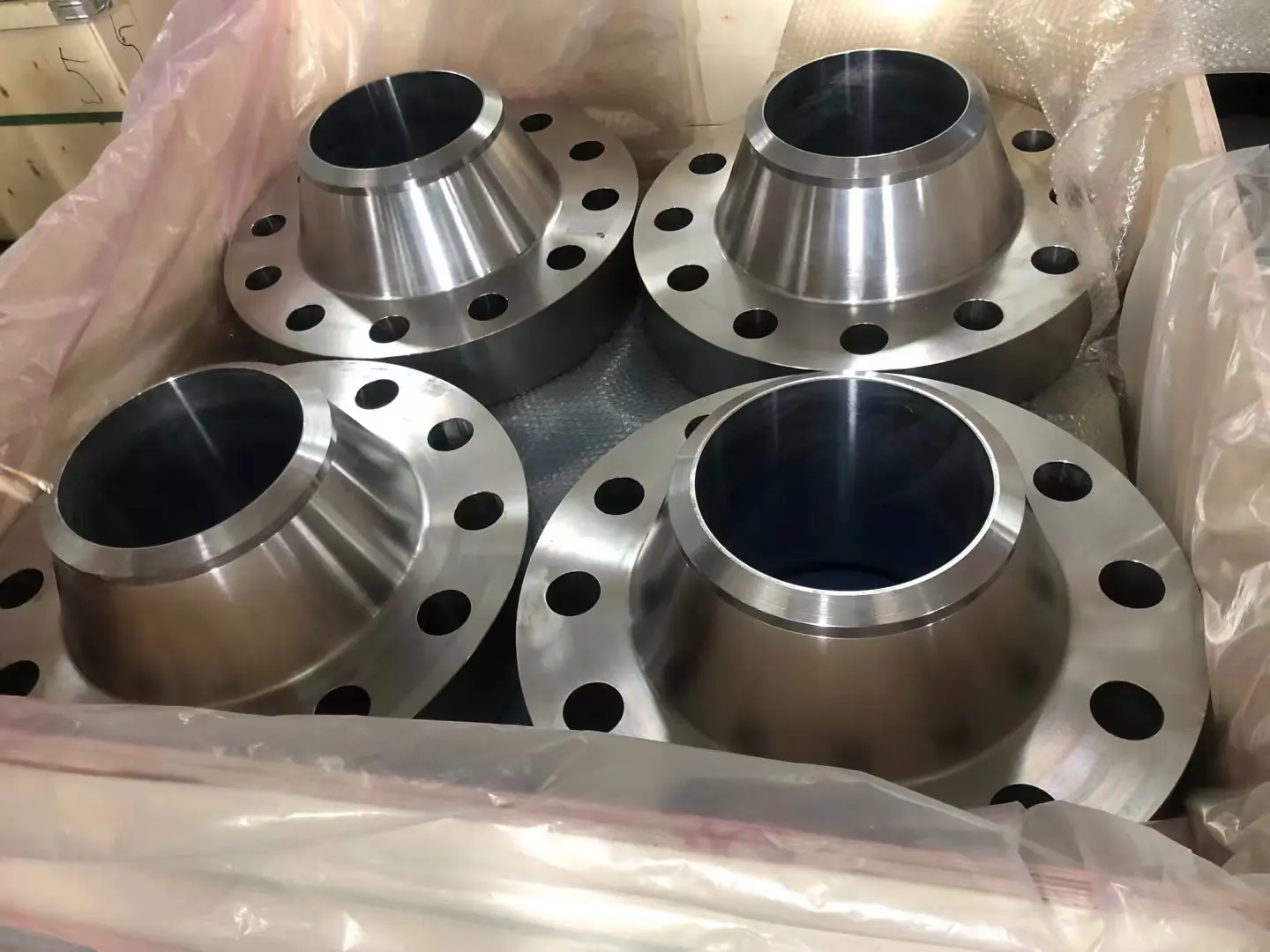

Weld Neck Flanges (WNRF)
Features a long tapered hub that gradually transfers stress from the flange to the pipe. Essential for severe conditions involving high pressure, sub-zero temperatures, or cyclic loading.

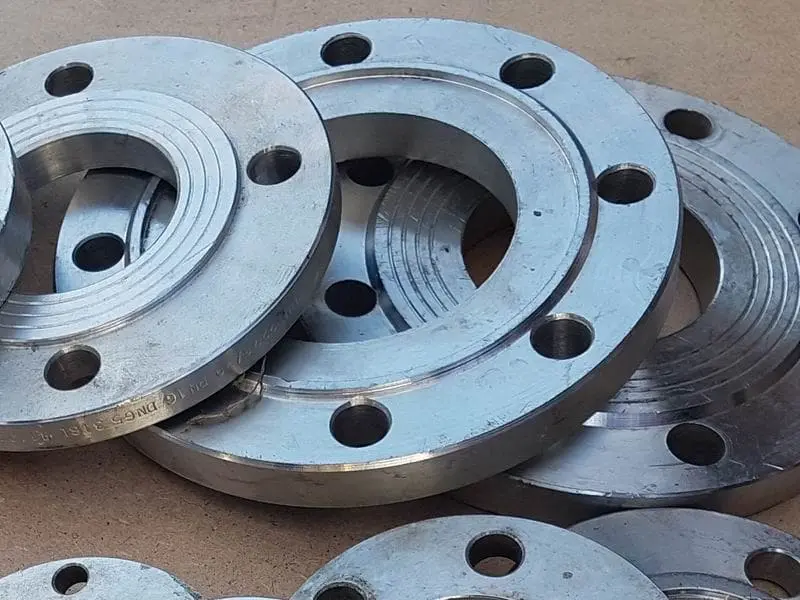

Slip-On Flanges (SORF)
Slips directly over the pipe and is secured with top and bottom fillet welds. Highly preferred for lower pressure applications due to reduced fabrication costs and easier alignment.
Blind Flanges (BLRF)
Manufactured without a center bore to completely terminate piping systems or seal pressure vessel openings. Must withstand the highest bending stresses at the center point.

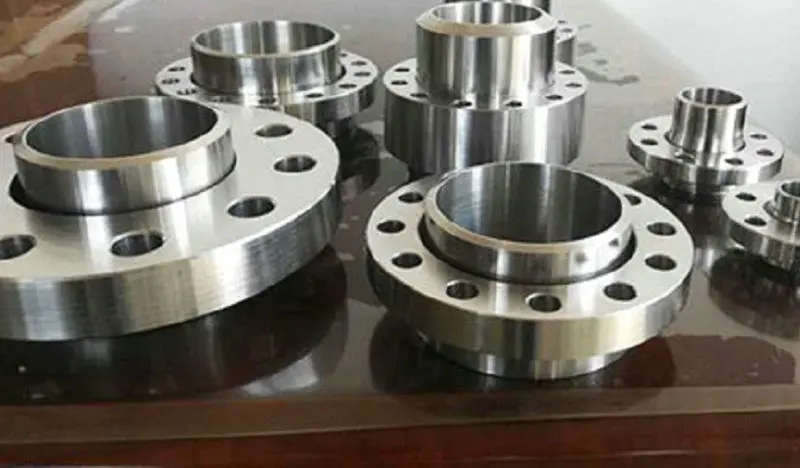

Lap Joint Flanges
Used in conjunction with a stub end fitting. The flange freely rotates over the pipe, allowing for rapid bolt-hole alignment—ideal for systems requiring frequent dismantling for inspection.
