Pipes & Tubes
Horizon Steel N Alloyis a premier supplier of high-grade industrial pipes and tubes. Engineered for high-pressure environments, extreme temperatures, and corrosive applications, our piping solutions deliver uncompromising structural integrity for critical infrastructure.
- Seamless & Welded Formats Available
- Custom Cut-to-Length Services
- 100% Traceability with EN 10204 3.1 MTC
Available Materials & Grades
| Material Type | Available Grades | International Standards |
|---|---|---|
| Stainless Steel | 304, 304H, 304L, 316, 316H, 316L, 316Ti, 309, 310S, 317L, 321, 347, 904L | ASTM A312, A213, A249, A269, A358 |
| Carbon & LTCS | A106 Gr. A/B/C, A53 Gr. A/B, API 5L Gr. B/X42/X52/X60/X70, A333 Gr. 1/6 | ASTM A106, A53, API 5L, A333 |
| Alloy Steel | P1, P5, P9, P11, P12, P22, P91 | ASTM A335, A213, A691 |
| Duplex & Super Duplex | UNS S31803 (2205), UNS S32205, UNS S32750 (2507), UNS S32760 (Zeron 100) | ASTM A790, A789, A928 |
| High Nickel & Exotic | Inconel (600, 601, 625, 718), Hastelloy (C276, C22, B2), Monel (400, K500), Incoloy (800, 825) | ASTM B163, B167, B407, B622, B444 |
| Copper & Cupro Nickel | Electrolytic Copper, Commercial Brass, Cupro Nickel (90/10, 70/30) | ASTM B42, B43, B111, B466 |
| Aluminum Alloys | 1060, 2024, 5052, 6061, 6063, 7075 | ASTM B210, B221, B241 |
| Titanium | Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7 | ASTM B338, B861, B862 |
Comprehensive Technical Specifications
| Specification Parameter | Detailed Range & Capabilities |
|---|---|
| Outer Diameter (OD) |
Seamless (SMLS): 1/8" NB to 24" NB (10.3mm to 610mm OD) Welded (ERW): 1/2" NB to 24" NB (21.3mm to 610mm OD) Large Diameter (EFW / LSAW / DSAW): 16" NB to 100" NB Capillary & Instrumentation: 0.3mm OD to 15mm OD |
| Wall Thickness (WT) |
Standard Schedules: SCH 5S, 10S, 20, 30, 40S (STD), 60, 80S (XS), 100, 120, 140, 160, XXS Absolute Thickness Range: 0.5mm to 60.0mm (Custom heavy-wall available) |
| Length Options |
Single Random Length (SRL): 5.0 to 7.0 Meters Double Random Length (DRL): 11.0 to 13.0 Meters Fixed / Custom Cut: Precision CNC cut-to-length up to 18 Meters with zero-burr guarantee. |
| Manufacturing Processes | Seamless, ERW (Electric Resistance Welded), EFW (Electric Fusion Welded), LSAW (Longitudinal Submerged Arc Welded), HSAW (Helical), Cold Drawn, and Hot Extruded. |
| End Finishes |
Plain End (PE): Square cut, de-burred. Beveled End (BE): Precision 30° to 37.5° bevel for immediate welding. Threaded: Threaded Both Ends (TBE), NPT, BSPT, BSPP. Other: Grooved ends, flanged, and coupled. |
| Surface Finishes & Coatings |
Standard: Bare, Mill Varnish, Oiled (Anti-rust). Stainless / Exotic: Pickled & Passivated, Electro-Polished (EP), Bright Annealed (BA). Heavy Duty / Pipeline: 3LPE (3-Layer Polyethylene), 3LPP, FBE (Fusion Bonded Epoxy), PTFE, Hot-Dipped Galvanized. |
| Testing & Compliance |
Non-Destructive Testing (NDT): 100% Ultrasonic Testing (UT), Eddy Current, X-Ray / Radiography (RT) for welded seams. Mechanical/Chemical: Hydrostatic Testing, Flattening/Bending, PMI (Positive Material Identification). Dimensional Tolerances: Conforming to ASTM A530, A999, EN ISO 1127 (D3/T3, D4/T4). |
Structural Types & Formats

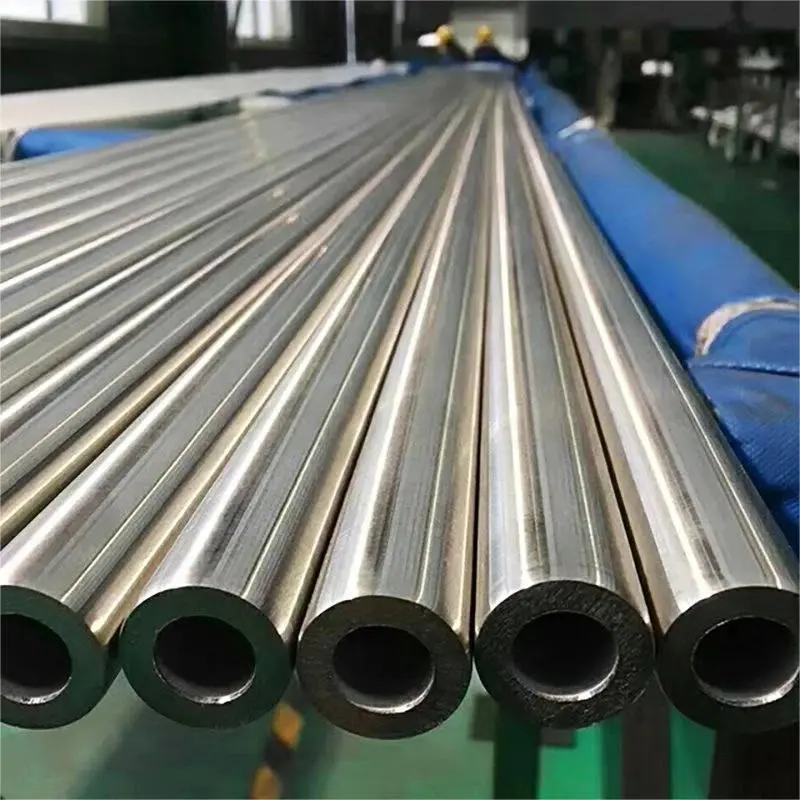

Seamless Pipes & Tubes
Manufactured via hot extrusion or cold drawing with zero welded seams. Engineered specifically for extreme hydraulic pressure, thermal cycling, and critical process environments.

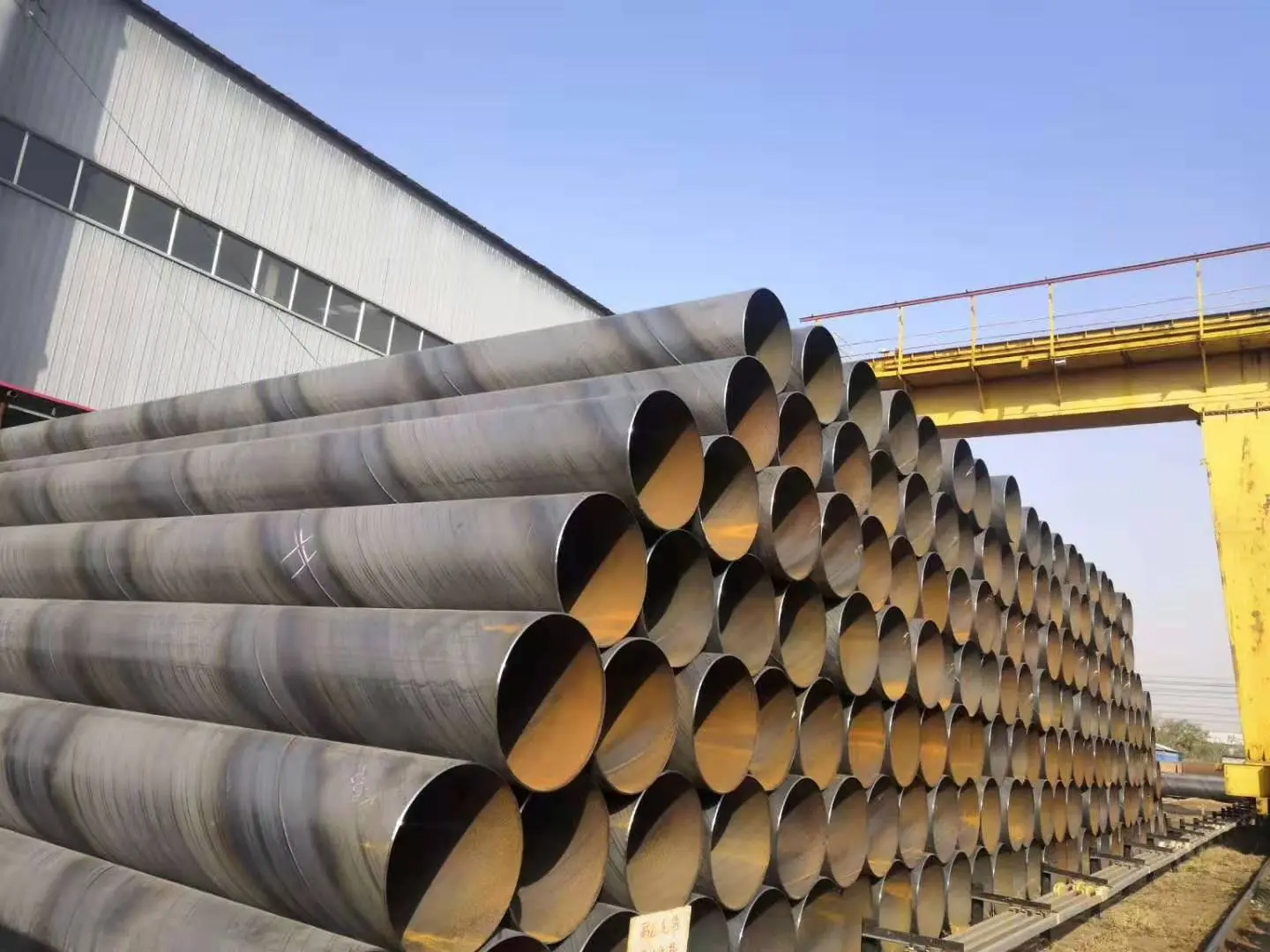

ERW & Welded Pipes
Produced from high-strength metal strips rolled and welded longitudinally. High surface accuracy and uniform wall thickness ideal for water lines, structural supports, and low-to-medium pressure pipelines.

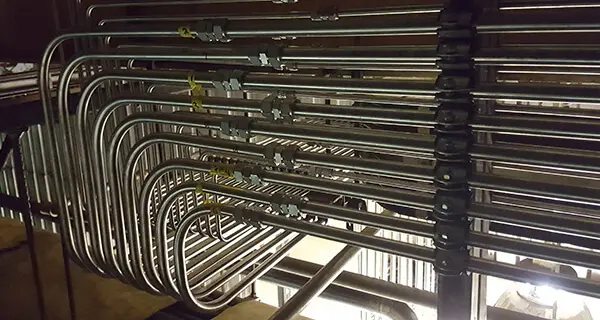

Instrumentation Tubes
Highly calibrated, thin-walled capillary tubes designed for control panels, analytical equipment, and hydraulic control systems where micro-tolerances are critical.

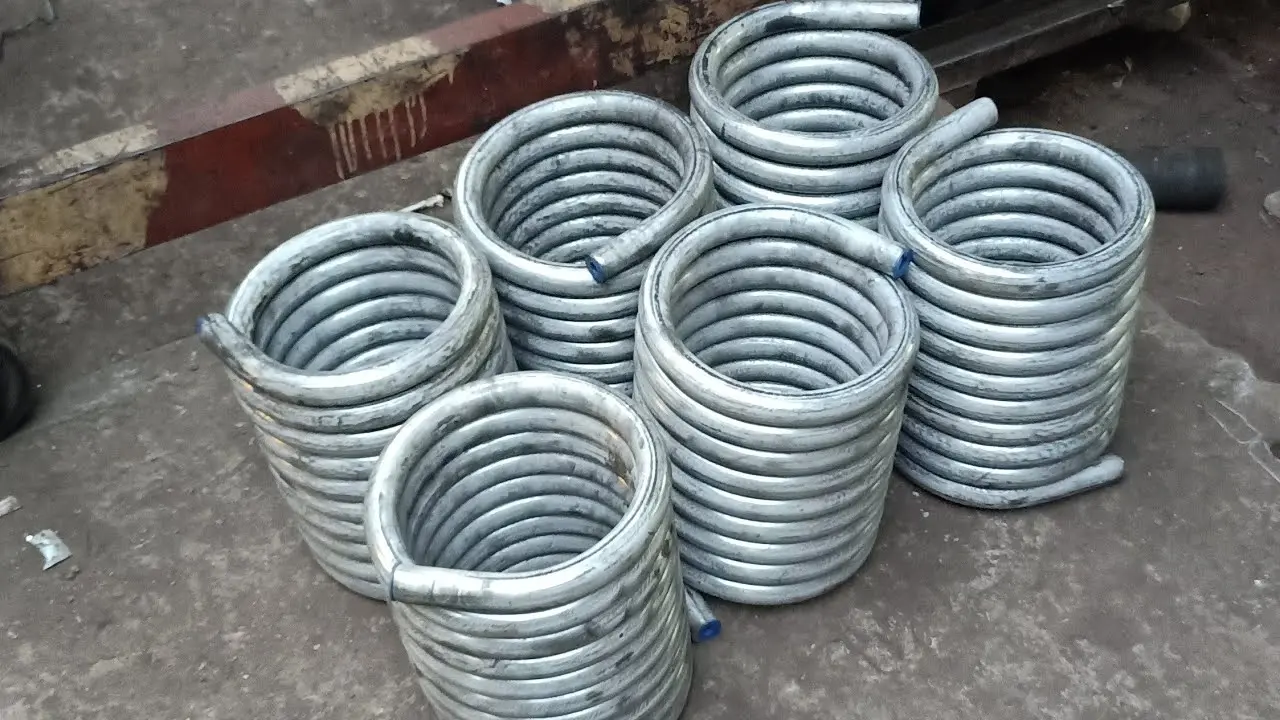

Coiled & U-Bend Tubes
Custom-bent and continuous coiled tubing configurations optimized for boilers, condensers, heat exchangers, and space-constrained subsea processing modules.
