Pneumatic & Hydraulic Fittings
Horizon Steel N Alloy supplies premium, high-performance fittings engineered for the demanding fluid power industry. From ultra-fast pneumatic automation circuits to heavy-duty, extreme-pressure hydraulic systems, our fittings are designed to provide zero-leakage, vibration-resistant connections that maximize machinery uptime and operational safety.
- Pressures from Vacuum to 10,000+ PSI
- JIC, ORFS, DIN 2353 & Push-to-Connect
- High Impulse and Vibration Fatigue Resistant
Available Materials & Grades
| Material Type | Precision Machined Grades | Surface Protection & Standards |
|---|---|---|
| Stainless Steel | 316, 316L, 316Ti (High-corrosion hydraulic systems) | ASTM A276, A479 (Passivated Finish) |
| Carbon Steel | 12L14, 1020, 1045 (Standard heavy-duty hydraulics) | Cr3+ Zinc or Zinc-Nickel Plated (ISO 9227 tested) |
| Brass Alloys | CA360, IS 319 Free Cutting Brass (Standard pneumatics) | ASTM B16 (Natural or Nickel-Plated) |
| High Nickel Alloys | Monel 400, Hastelloy C276, Inconel 625 (Subsea applications) | ASTM B164, B574 |
| Sealing Elastomers | NBR (Buna-N), FKM (Viton), EPDM, PTFE (Teflon) | Compatible with mineral oils, Skydrol, and synthetic fluids |
Comprehensive Technical Specifications
| Specification Parameter | Detailed Range & Capabilities |
|---|---|
| Fitting Configurations | Straight Adapters, 90°/45° Elbows, Tees, Crosses, Banjo Fittings, Bulkheads, Hose Barbs, Swivel Nuts, and Quick Disconnect Couplings (QDC). |
| Size Range (Nominal) |
Fractional: 1/8" to 2" OD (Dash sizes: -2 to -32) Metric: 4mm to 42mm OD |
| Operating Pressures |
Pneumatic: Vacuum to 300 PSI (20 bar) Hydraulic: 1,500 PSI to 10,000+ PSI (100 to 690+ bar) depending on size and standard. |
| Port & Thread Standards | NPT, BSPT, BSPP (ISO 1179), SAE Straight Thread O-Ring (SAE J1926/ORB), Metric (DIN 3852), JIS, and UNF. |
| Hydraulic Connection Types | JIC 37° Flare (SAE J514), O-Ring Face Seal / ORFS (SAE J1453), Bite-Type Tube Fittings (DIN 2353 / ISO 8434-1), SAE 45° Flare. |
| Pneumatic Connection Types | Push-to-Connect (PTC), Compression, Push-On / Barb, and Miniature Threaded. |
| Testing, Inspection & Compliance | High-impulse fatigue tested (1 million cycles), Proof pressure & burst tested (4:1 safety factor), Salt spray corrosion tested (>720 hours for Cr3+ plating). |
Structural Types & Formats
JIC 37° Flare (SAE J514)
The most common hydraulic connection. Features a metal-to-metal seating mechanism providing excellent vibration resistance and reliable fluid sealing across medium to high-pressure fluid lines.

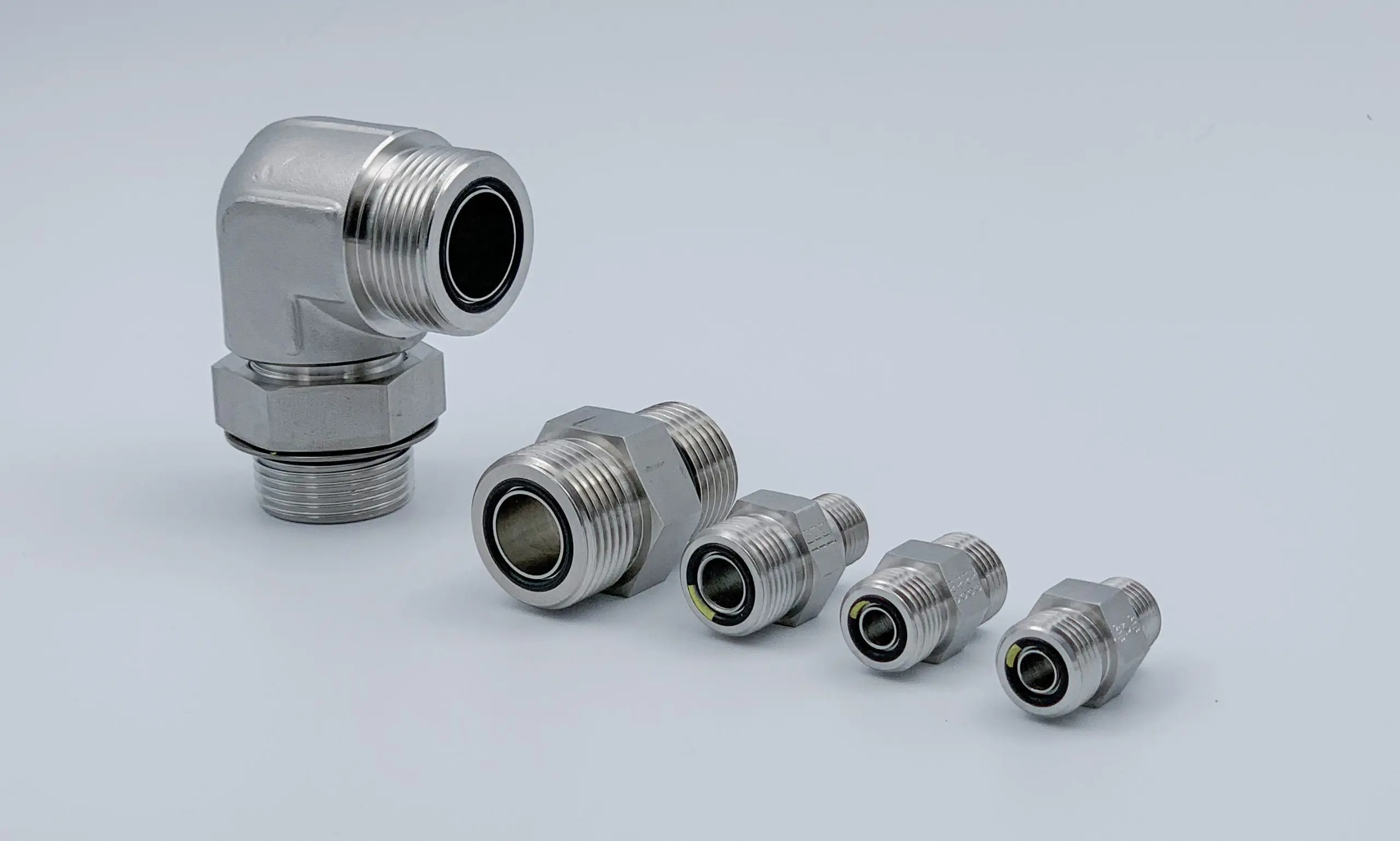

O-Ring Face Seal (ORFS)
Utilizes a captive elastomeric O-ring resting in a precision-machined groove on the fitting face. Eliminates hydraulic weeping entirely and resists extreme pressure impulses and mechanical vibrations.

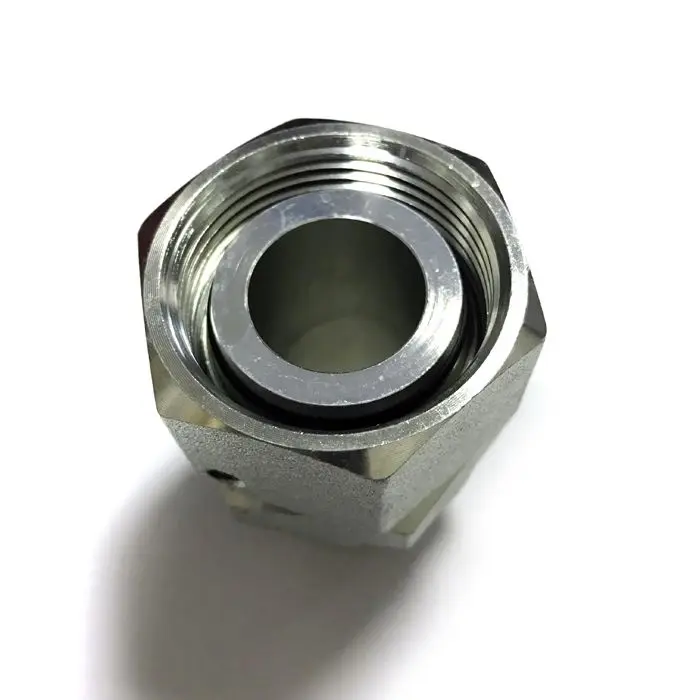

DIN 2353 Bite-Type (Ermeto)
Metric hydraulic tube fittings utilizing a progressive cutting ring (ferrule) that securely bites into the steel tube wall. Known for exceptional hold strength in heavy machinery and shipbuilding.

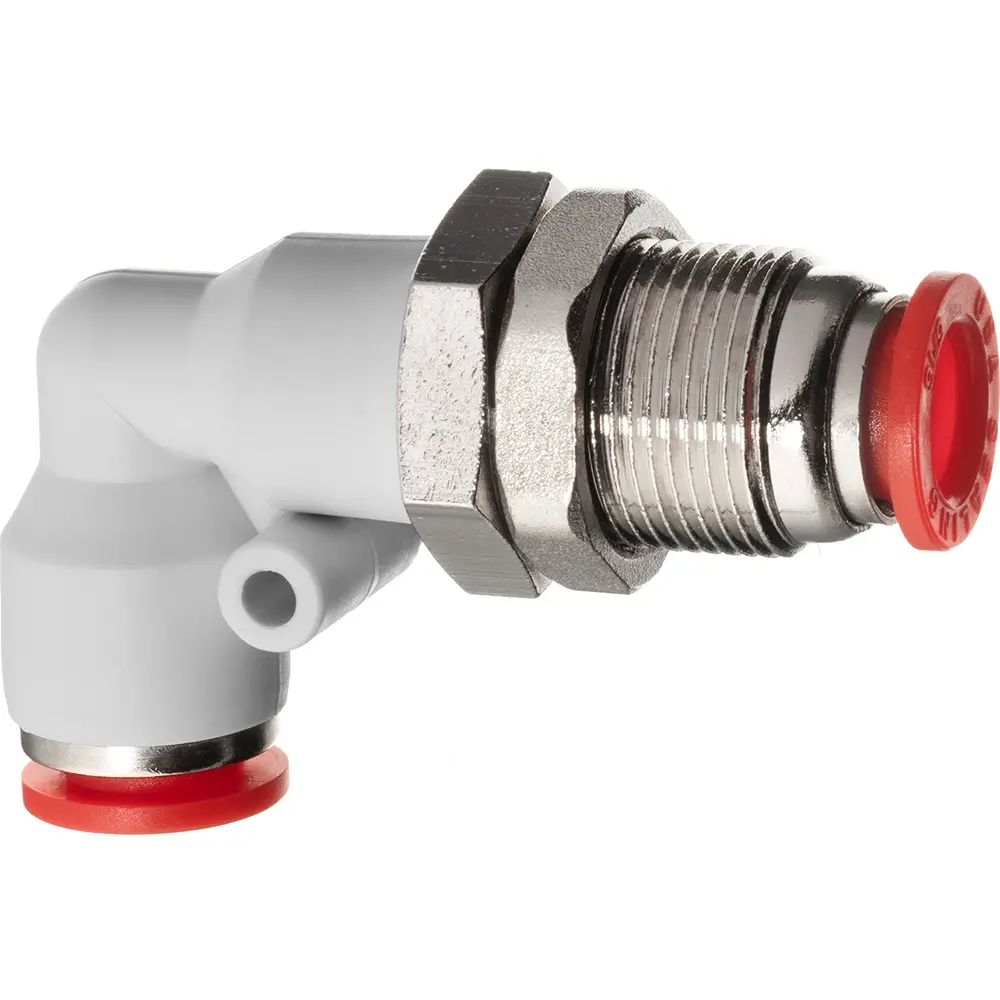

Push-to-Connect (PTC)
Instant pneumatic tube connections requiring no tools. Internal stainless steel grab-rings securely hold nylon, PU, or PTFE tubing, allowing for rapid assembly and reconfiguration of factory automation lines.
