Sheet & Plate
Horizon Steel N Alloy supplies premium industrial sheets, plates, and coils engineered for structural fabrication, pressure vessel manufacturing, and architectural applications. From ultra-thin precision cold-rolled sheets to heavy-duty hot-rolled structural plates, we deliver materials with exceptional surface finishes, uniform flatness, and guaranteed mechanical properties.
- Thicknesses from 0.1mm (Foil) to 150mm+ (Plate)
- Standard & Custom CNC Profile Cutting
- Boiler Quality (BQ) & Marine Grades Available
Available Materials & Grades
| Material Type | Available Material Grades | International Standards |
|---|---|---|
| Stainless Steel | 304, 304L, 316, 316L, 309S, 310S, 321, 410, 420, 430, 904L | ASTM A240 |
| Carbon & Mild Steel | IS 2062 (Gr A/B), ASTM A36, S235JR, S275JR, S355JR | EN 10025, ASTM A36 |
| Boiler & Pressure Vessel | SA516 Grade 60, SA516 Grade 70 (BQ Plates) | ASME SA516 |
| Alloy Steel | SA387 Gr 11, SA387 Gr 22 (Chrome-Moly Plates) | ASME SA387 |
| Duplex & Super Duplex | UNS S31803 (2205), UNS S32750 (2507) | ASTM A240 |
| Non-Ferrous & Exotic | Aluminum (1050, 6061, 5052), Copper, Brass, Inconel, Hastelloy, Titanium | ASTM B209, B152, B575 |
Comprehensive Technical Specifications
| Specification Parameter | Detailed Range & Capabilities |
|---|---|
| Thickness Range |
Shim & Foil: 0.05mm to 0.3mm Cold Rolled Sheet: 0.4mm to 4.0mm Hot Rolled Plate: 5.0mm up to 150mm+ |
| Standard Dimensions |
Widths: 1000mm, 1220mm (4ft), 1250mm, 1500mm (5ft), 2000mm. Lengths: 2000mm, 2440mm (8ft), 2500mm, 3000mm, 6000mm. Coils: Available in continuous mill edge or slit edge coils. |
| Surface Finishes (Stainless) | No.1 (Hot Rolled, Annealed & Pickled), 2B (Cold Rolled, Matte), BA (Bright Annealed), No.4 (Brushed/Satin), No.8 (Super Mirror), Hairline (HL). |
| Value-Added Processing | Precision Plasma Cutting, Waterjet Cutting, Laser Profile Cutting, Shearing, Press-Braking/Bending, Plate Rolling, and PVC Film Coating (for surface protection). |
| Edge Conditions | Mill Edge (Untrimmed), Slit Edge, Machined Square Edge, or Custom Beveled Edge for heavy plate welding prep. |
| Specialty Formats | Chequered (Tear Drop / Diamond pattern) plates, Perforated Sheets, Expanded Metal, and Corrugated Roofing Sheets. |
| Testing & Compliance | Ultrasonic Testing (UT) for plates >10mm to guarantee zero internal delamination. HIC Testing for pressure vessel grades. 100% PMI and EN 10204 3.1 MTC supplied. |
Structural Types & Formats

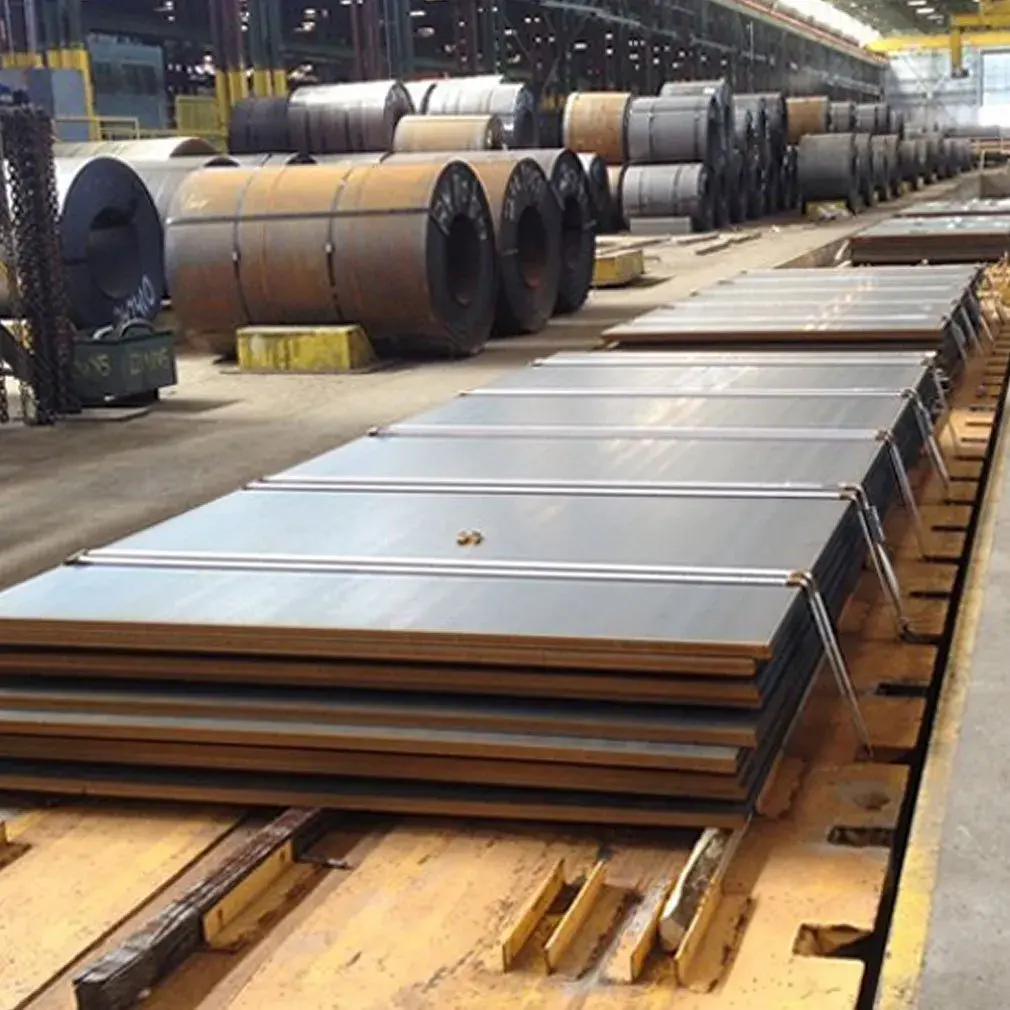

Hot Rolled (HR) Plates
Thick, heavy-duty plates processed at high temperatures. Essential for heavy load-bearing applications including shipbuilding, bridges, structural framework, and massive storage tanks.

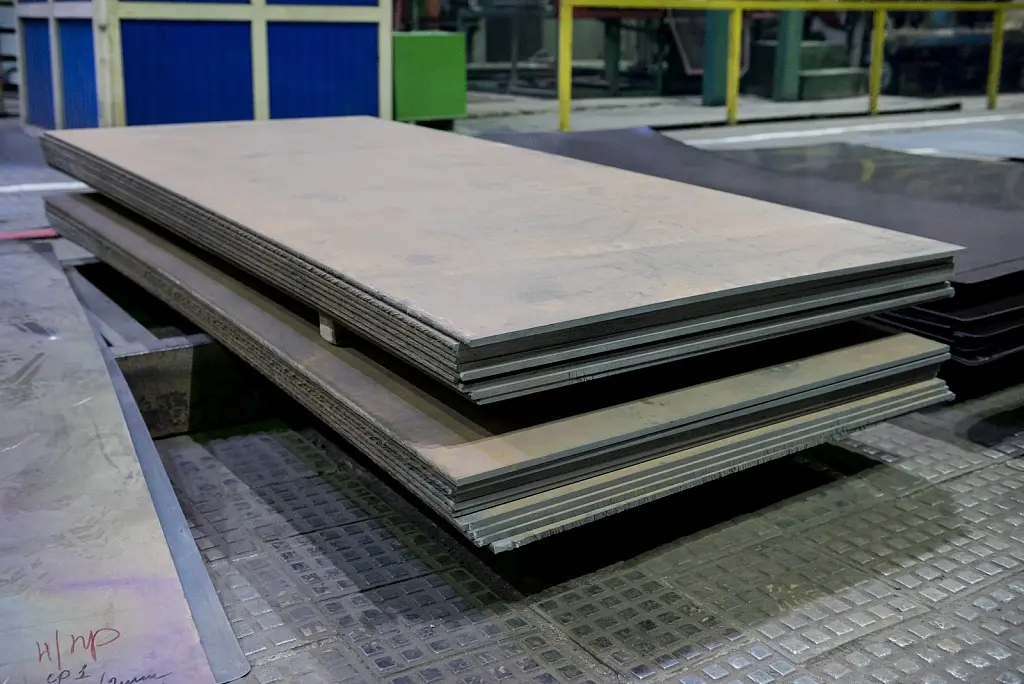

Cold Rolled (CR) Sheets
Processed at room temperature to achieve exact dimensional tolerances and exceptionally smooth surface finishes. Ideal for automotive panels, home appliances, and architectural facades.

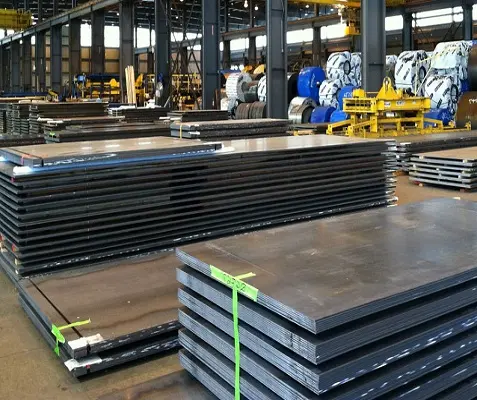

Boiler Quality (BQ) Plates
Engineered with exceptional notch toughness and weldability. Specifically manufactured (SA516 Gr 60/70) to contain high-pressure industrial gases and liquids in extreme thermal environments.

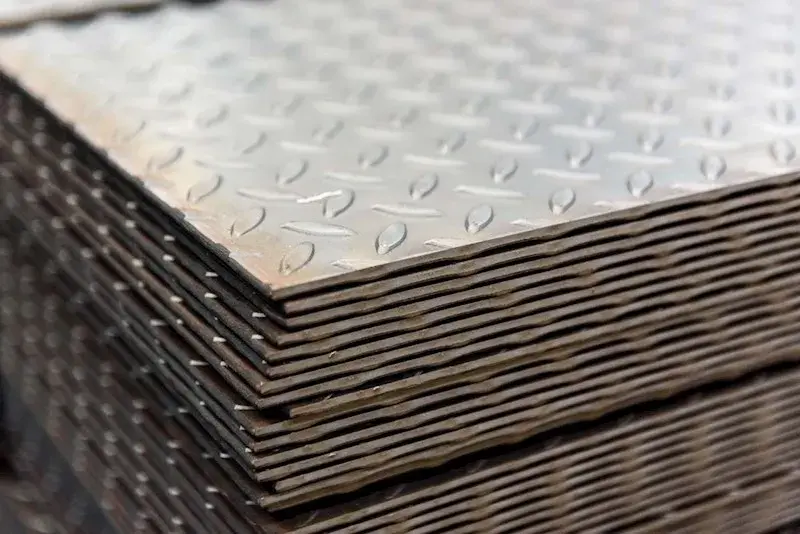

Chequered / Tread Plates
Features a raised diamond or tear-drop pattern on one side. Provides vital anti-slip friction for industrial walkways, stair treads, loading docks, and heavy vehicle flooring.
